Marine Grade FSW plate
FSW is used for joining aluminum plates in shipbuilding
Friction stir welding (FSW) joins aluminum plates by using a rotating tool to generate friction heat, which softens the metal and allows it to be mechanically intermixed and forged together, creating a solid-state weld without melting the material
In friction stir welding, a rotating tool moves along the weld joint and melts the aluminum through the generation of friction heat. The tool’s rotation stirs the melted aluminum such that the two plates are joined. In this model, two aluminum plates are joined by generating friction heat with a rotating tool. Heat is transferred by conduction from the tool into the plates. The movement of the tool is taken into account using a convective heat flux term. The plate surfaces are cooled through free convection and surface-to-ambient radiation.

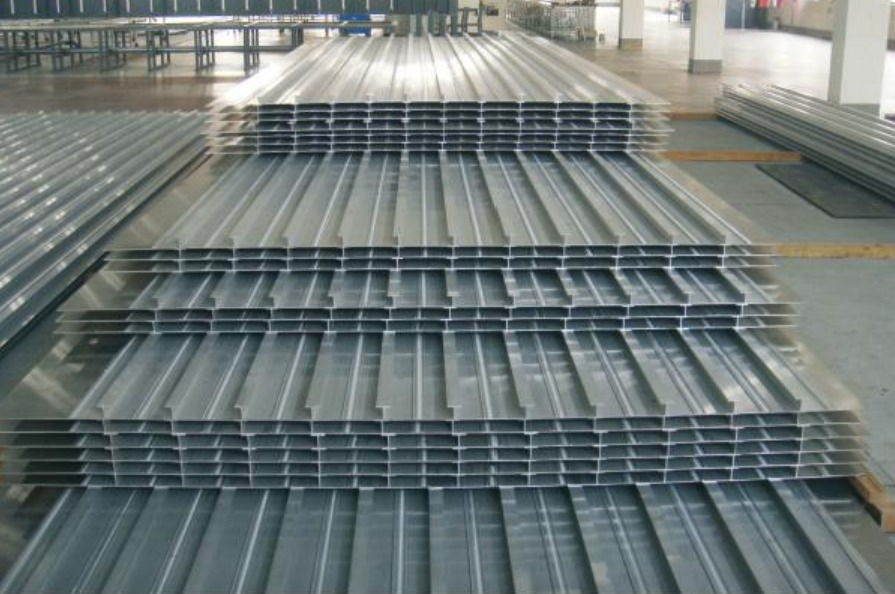

Aluminum alloy friction stir welding external walls, roofs, rain sheds for large ship buildings:

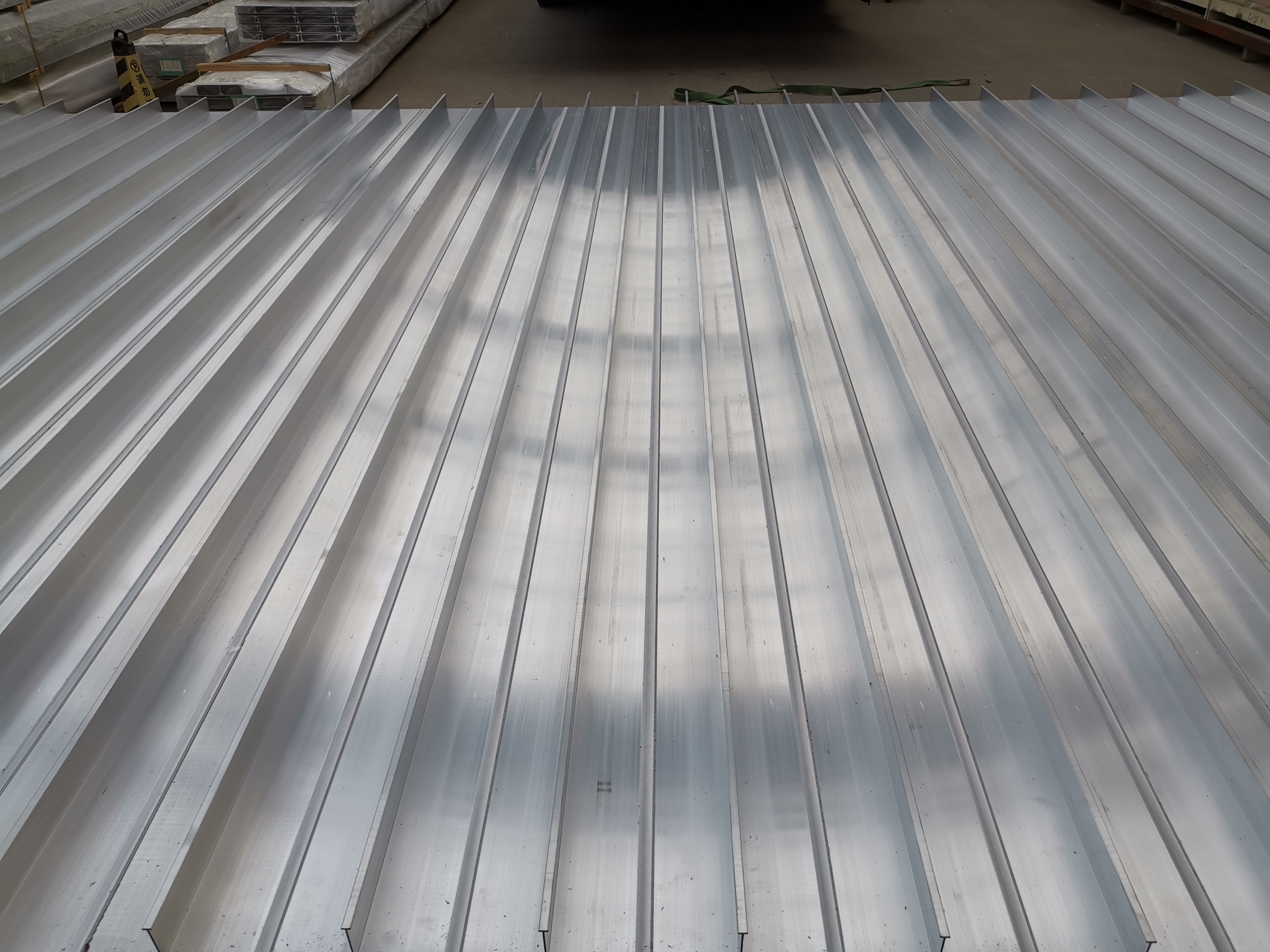

Marine wide-width aluminum alloy friction stir welding ribbed deck, hoarding, roof

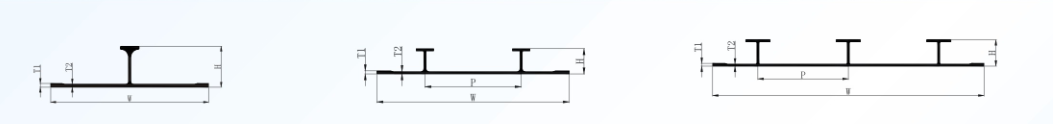

Marine Grade Stiffener Panel Type:
| Single stiffener panel | Double-stiffened panel | Multi stiffened panel | ||||||||||||||
| T1 | T2 | W | H | L | T1 | T2 | W | H | P | L | T1 | T2 | W | H | P | L |
| （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） |
| 2.8 | 1.8 | 200 | 60 | 12500 | 3 | 1.9 | 212 | 32.5 | 106 | 12500 | 3.5 | 2.5 | 345 | 37.5 | 115 | 12500 |
| 4 | 3 | 250 | 43 | 12500 | 2 | 270 | 37 | 135 | ||||||||
| 300 | 43 | 3.5 | 2.5 | 270 | 37.5 | 135 | 12500 | |||||||||
| 400 | 43 | 4 | 3 | 252 | 33 | 126 | 12500 | |||||||||
| 5 | 4 | 250 | 64 | 12500 | 320 | 38 | 160 | |||||||||
| 300 | 54 | |||||||||||||||
| 6 | 5 | 250 | 55 | 12500 | ||||||||||||
| 300 | 55 | |||||||||||||||
| 7 | 6 | 250 | 56 | 12500 | ||||||||||||
| 300 | 66 | |||||||||||||||
| 8 | 7 | 250 | 57 | 12500 | ||||||||||||
| 300 | 67 | |||||||||||||||
| 9 | 8 | 250 | 68 | 12500 | ||||||||||||
| 300 | 68 | |||||||||||||||
| 9.6 | 9 | 250 | 59 | 12500 | ||||||||||||
