Marine GradeAluminum-steel clad plate
what is Aluminum-steel clad plate?
Aluminum steel clad plate is a kind of clad material with high strength and good toughness. Its appearance greatly improves the bearing capacity and seismic performance of buildings. Aluminum has low density, high plasticity, corrosion resistance, easy processing, wear resistance, and electrical conductivity, while steel has high strength, good plasticity and toughness, and good economy, but it is not corrosion resistant. Aluminum steel clad plates are the combination of the two materials. A material that combines advantages. This process, often involving roll bonding, results in a robust material suitable for various applications, including heat exchangers, tanks, shipbuilding and high-speed train components
Aluminum steel clad plates are a combination of the two materials—a material that combines advantages.

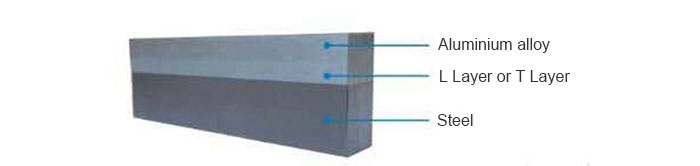

Marine aluminum-steel clad plates are used to facilitate joining aluminum and steel structures in marine applications like shipbuilding and yacht building. These plates are typically fabricated by explosive bonding or roll bonding, creating a metallurgical bond between the two metals. They serve as a transition joint, allowing for welding of dissimilar metals and avoiding corrosion issues associated with mechanical fasteners.
aluminum clad steel plate is commonly used for shipbuilding. They are used as transition materials between hulls to save costs and reduce the weight of hulls. We have been supplying aluminum clad steel sheet to domestic and foreign customers for over a long period of time. Our customers are located in more than 50 countries around the world. Market acclaimed.
Comprehensive Marine Aluminum Certifications: CCS, DNV, NK, CCS, ABS, BV, LR, KR, etc.
Specifications
| Base alloy | Q235,Q245R,Q345R,DH36,CCSB |
| Cladding alloy | 5083, 1060,1070,3A21 |
| Standard | MIL-J-24445A |
| Cladding thickness | ≥10mm |
| Base thickness | ≥12mm |
| Length | ≤3000mm |
| Width | ≥20mm |
Key Features and Benefits:
Composite Material:
Aluminum-clad steel plate combines the strengths of both metals.
Enhanced Corrosion Resistance:
The aluminum layer protects the underlying steel from corrosion, making it suitable for harsh environments.
Improved Heat Conductivity:
Aluminum is a good conductor of heat, which can be advantageous in applications like heat exchangers or heat sinks.
Weight Reduction:
Compared to solid steel, aluminum-clad steel offers a lighter alternative while maintaining structural integrity.
Examples of Applications:
High-Speed Sound Insulation Board: The aluminum cladding helps in soundproofing.
Ship Bottoms and Buildings: The corrosion resistance of aluminum is beneficial in marine applications.
Plane Wings and Other Components: Aluminum-clad steel can be used in aerospace applications where lightweight and corrosion resistance are crucial.
Heat Exchangers: The high thermal conductivity of aluminum makes it suitable for heat transfer applications.
